MAGIC

Our Tracklights are ideal for spaces in residences, hotels, corridors and lobbies.

High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

Specifications

GENERAL

Model AT30010
LED COB
Power 12, 15 W
Operation voltage 100 - 277 VAC
Efficacy 57.8 lm/W
Power factor >0.9
CRI >90
Angle 10° ~ 50°
Driver Interno
Control options On-Off
Material Aluminum | PC
Colour Body - whote, black Reflector - white, black
IP rating IP20
Lifespan (L70) 30,000 hours
Warranty 3 years
CCT (K) 2700, 3000, 4000
Dimensions (AxB) Ø 55 x 143 mm

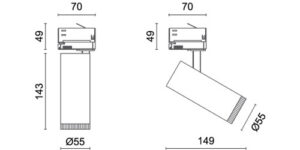

DIMENSIONS

MAGIC

Downloads

Model Voltage Power CCT Lumens Efficacy CRI Angle Dimensions File IES

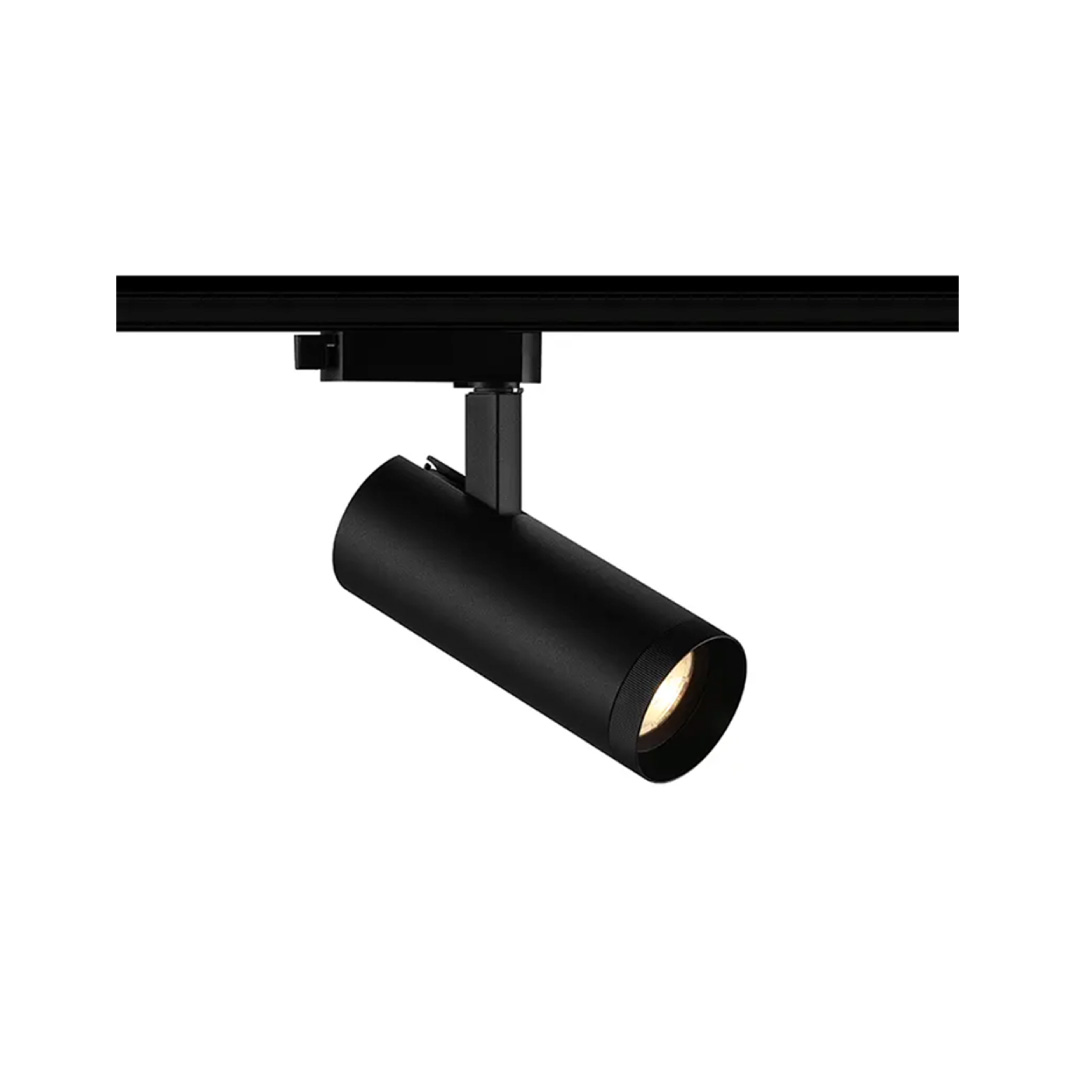

GRA-AT30010
100-277 VAC 12
15
2700
3000
4000
693.6
867
57.8 >90 10°~50° Ø 55 x 143 mm

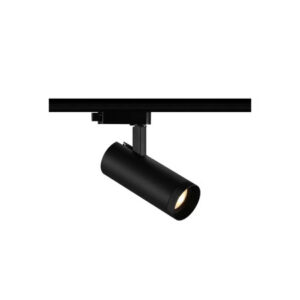

GRA-AT30020
100-277 VAC 20
25
2700
3000
4000
1156
1445
57.8 >90 10°~50° Ø 65 x 163 mm
