TUNE

Our pendant lights are ideal for spaces such as residences, hotels, restaurants, etc.

High-end LED lighting products provide energy savings of up to 60% compared to conventional solutions.

Specifications

GENERAL

Model AP10010
LED COB
Power 8, 10, 12
Operation voltage 100 - 277 VAC
Efficacy 83 lm/W
Power factor >0.9
CRI >90
Angle 15°, 24°, 36°, 60°
Driver Internal
Control options On-Off
Material Aluminum
Colour Body - white, black Reflector - black
IP rating IP20
Lifespan (L70) 30,000 hours
Warranty 3 años
CCT (K) 2700, 3000, 4000
Dimensions (AxB) Ø 55 x 300 mm

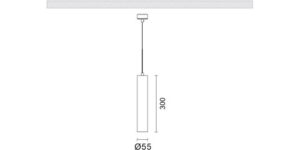

DIMENSIONS

TUNE

Downloads

Model Voltage Power CCT Lumens Efficacy CRI Angle Dimensions File IES

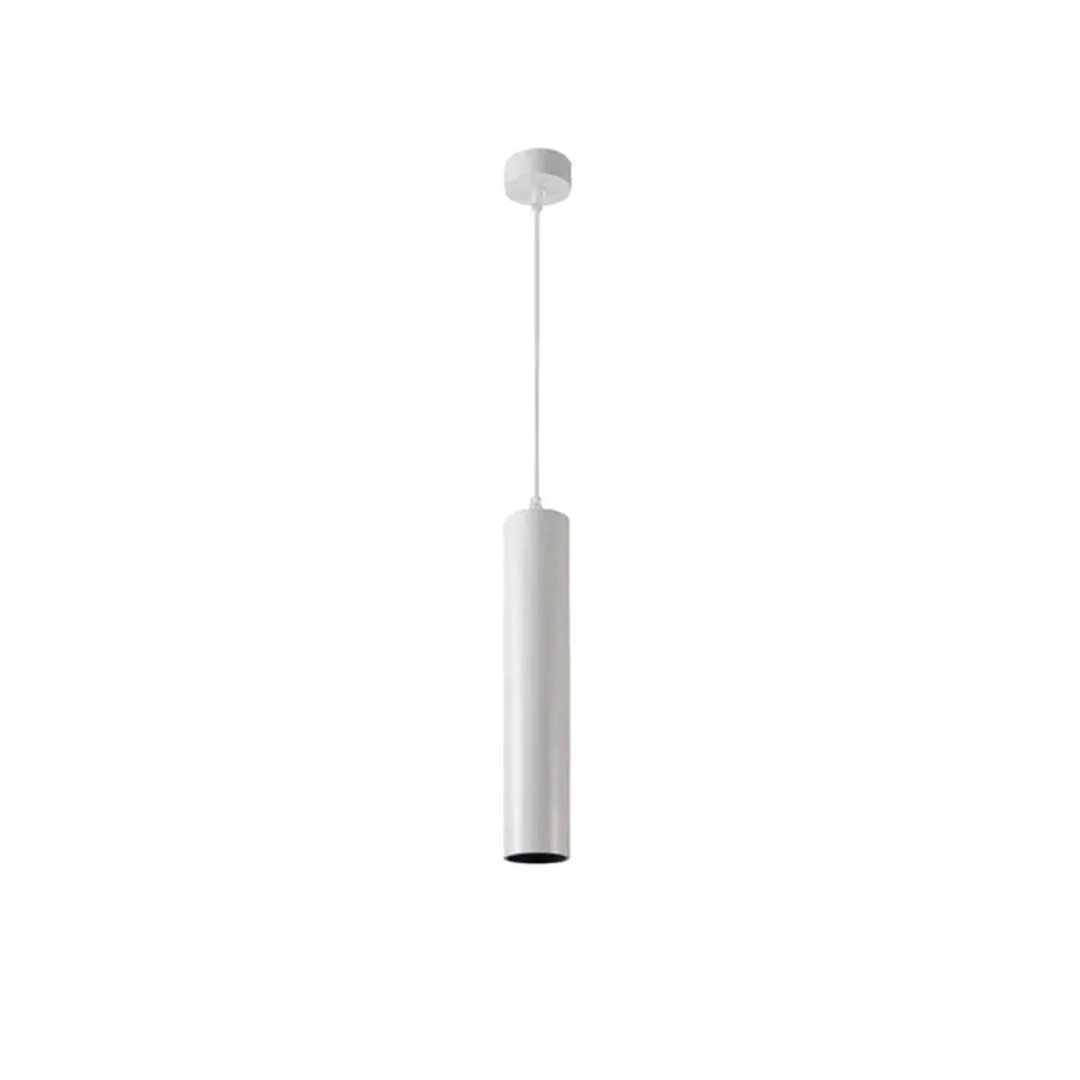

GRA-AP10010
100-277 VAC 8
10
12
2700
3000
4000
664
830
996
83 >90 15°, 24°, 36°, 60° Ø 55 x 300 mm

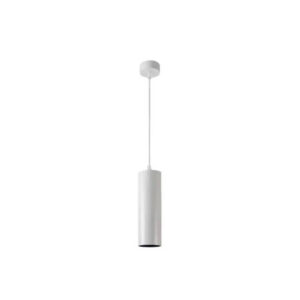

GRA-AP10030
100-277 VAC 10
12
15
2700
3000
4000
860
1159
1308
86
96.5
87.2
>90 15°, 24°, 36°, 60° Ø 85 x 200 mm
